2 ton chiller to 300/350 Lph
3 ton chiller to 450/500 Lph
3 phase - 5 ton chiller to 700/800 Lph
3 phase - 10 ton chiller to 1500 Lph
Water chiller & liquid chiller-:
300 lph fully automatic pump, fan, compressor & water dry run protection auto cut off switch auto connected pcb circuit.

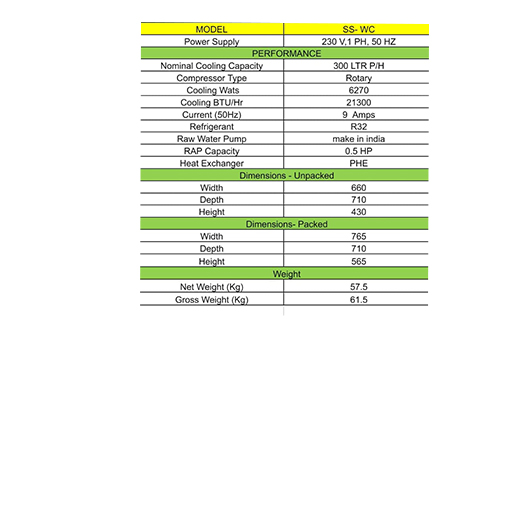

Performance & details-:
Cooling Capacity 300 Liter per hour
Power Supply 230 V,1 PH, 50 HZ
Compressor Type Rotary
Cooling Wats 6270
Cooling BTU/Hr 21300
Current (50Hz) 9 Amps
Refrigerant R32
Raw Water Pump - Made in india
RAP Capacity: 0.5 HP
Heat Exchanger: PHE
Dimensions - Unpacked
Width 660
Depth 710
Height 430
Dimensions- Packed
Width 765
Depth 710
Height 565
Weight
Net Weight (Kg) 57.5
Gross Weight (Kg) 61.5
● Prices are inclusive of GST. GST bill will be issued at time of dispatch.
● At this moment we do not have facility to obtain GST details at time of order placement on the website, however, our team will contact before final bill generation to get the GST details.
● Ships within 10 working days
● All Prices are Ex-Pune office.
● We will dispatch material thru Air / Road by transport suitable to customer’s choice, on To-pay basis.
Contact support@hub4machines.com for any queries.
